Advantages of ROOFTOP AIR CONDITIONER RENTAL
Rooftop air conditioner rental provides powerful air conditioning and air treatment systems, operating air-to-air or air-to-water, and are suitable for large volumes (industrial, hotels, restaurants, sporting events and gyms) and therefore particularly suitable for medium to large volumes such as meetings, theatrical events, etc.
- through our micro-perforated duct, the air is distributed to all areas of the room;
- our technicians are able to create rigid ducting, similar to a fixed installation;
- environmentally friendly because it runs on R-410A gas;
- the indoor unit has a regenerable metal mesh filter;
- SCROLL-type compressor;
- Thermal and acoustic insulation reinforced with 10 cm of highly concentrated polyethylene foam;
- silent because it produces low sound levels compared to the power output;
- variable poly fans in both the condenser and evaporator to adapt the air flow rates of the fans;
- maximum distances that can be covered: max. 50 m between evaporator and condensing unit, horizontally; 25 m vertically;

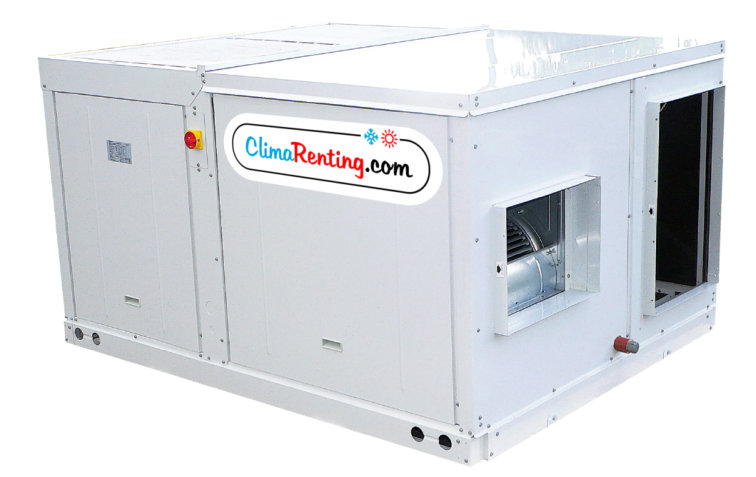

ROOFTOP 30

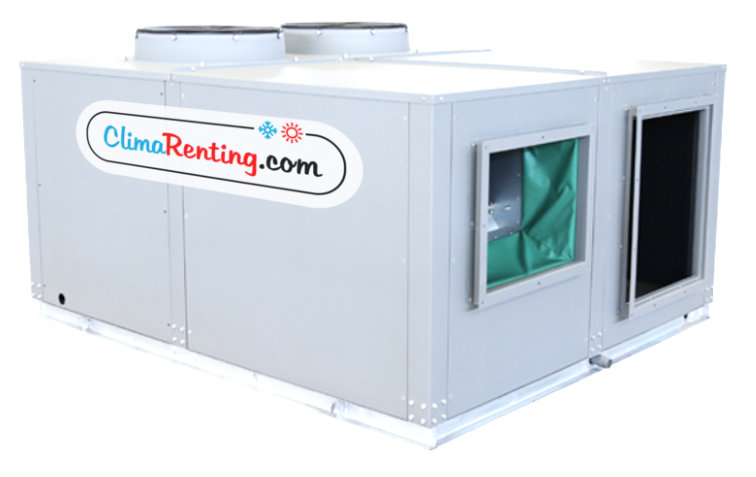

ROOFTOP 35
Technical Data
| ROOFTOP 30 | ROOFTOP 35 | |
|---|---|---|
| Cooling capacity (kW – btu/h) | 29,3 – 100.000 | 35,6 |
| Heating capacity (kW – btu/h) | 35,7 – 122.000 | 38,0 |
| Cold power consumption (kW – A) | 12,8 – 23,2 | 13,14 |
| Hot electricity consumption (kW – A) | 11,3 – 21,2 | 12,03 |
| Dimensions (mm) | 1.450×1,680×1,090 | 2.500×1,850×1,045 |
| Weight (Kg) | 440 | 650 |
| Electrical connection | CEE 5-pole | CEE 5-pole |
| Supplied electric cable (mt) | 2,0 | 2,0 |
| Optional 10 m electric cables. | CEE 5-pole | CEE 5-pole |
| Power supply (V,~,Hz) | 380~415, 3, 50 | 380, 3 ,50 |
| Complete data sheet |
MOBILE AIR CONDITIONER TROLLEY RENTAL
In the wheeled versions, the rooftop air conditioners are high-powered and are installed directly on truck trailers: when they arrive, all you have to do is lay the supply and return flexible pipes, already installed on board, and connect the electricity. Ideal for air conditioning and therefore also for heating large areas such as stone made structures, event halls and especially for emergencies, and therefore suitable for any requirement.

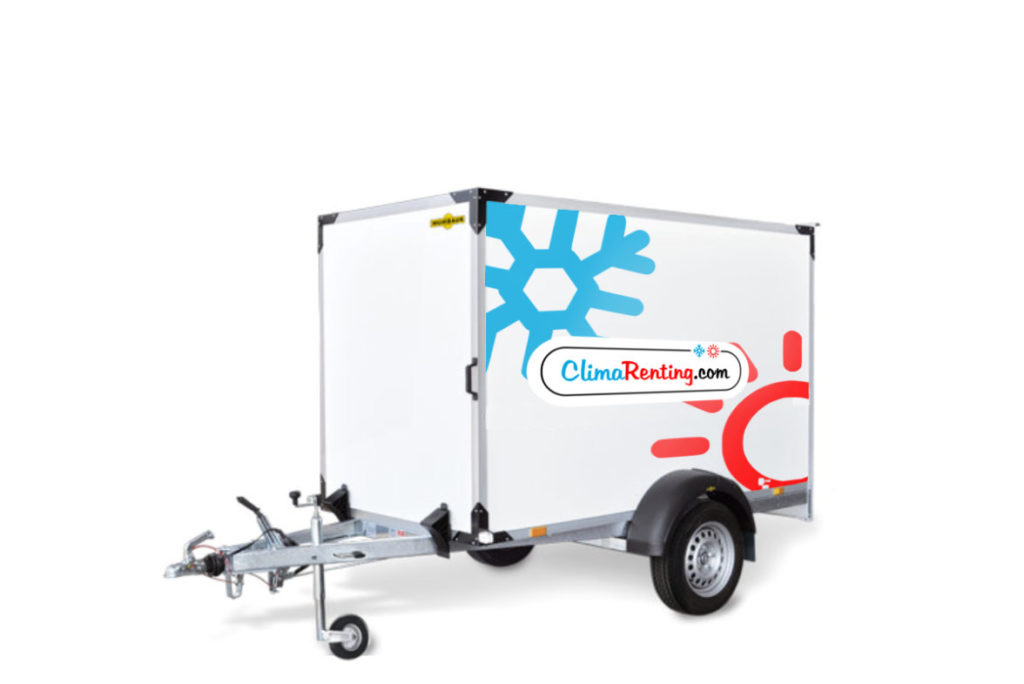

50 kW mobile air conditioner trolley

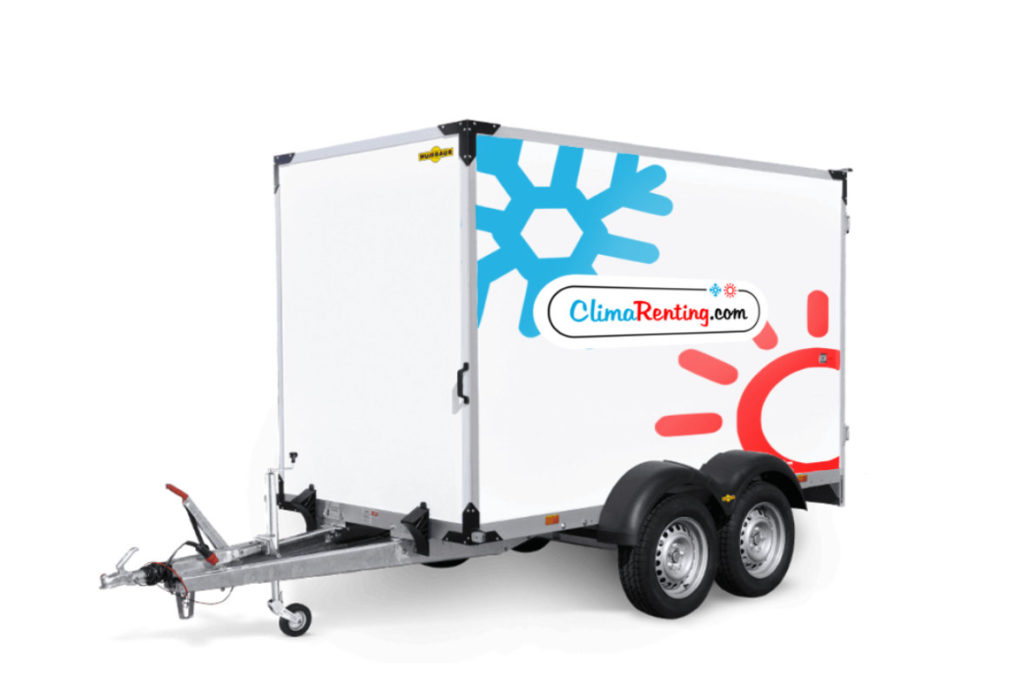

82 kW mobile air conditioner trolley

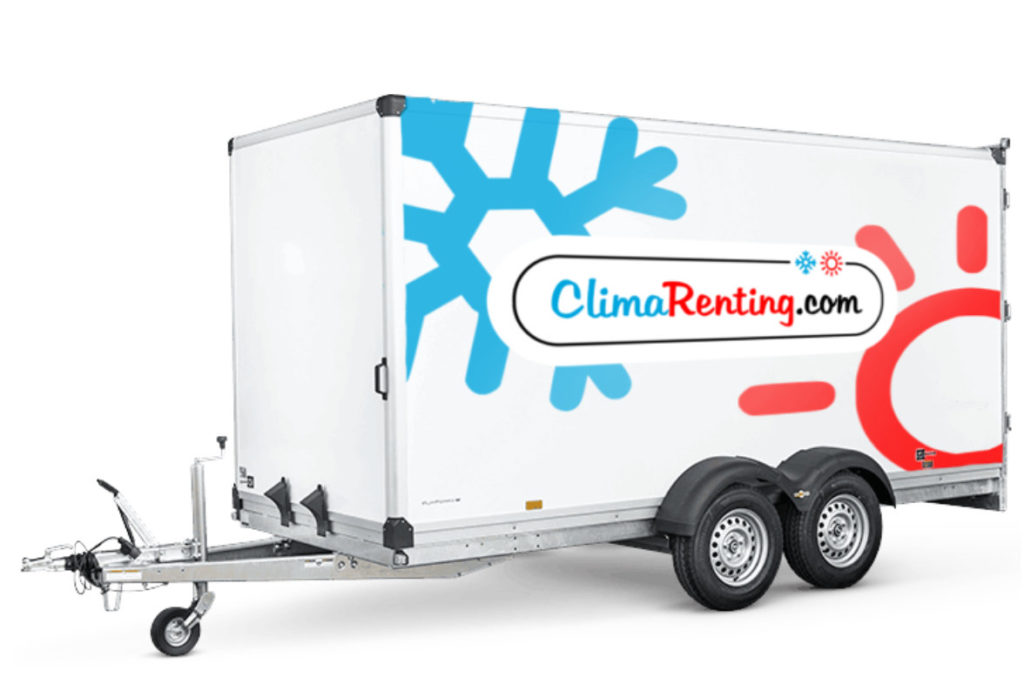

109 kW mobile air conditioner trolley
Technical Data
| CART 50 | CART 82 | CART 109 | |
|---|---|---|---|
| Cooling capacity (kW – btu/h) | 48,8 | 81,8 | 109,7 |
| Heating capacity (kW – btu/h) | – | – | – |
| Cold power consumption (kW – A) | – | – | – |
| Hot electricity consumption (kW – A) | – | – | – |
| Dimensions (mm) | 1.500X1,510X2,710 | 1.830X2.166X3.290 | 1.830X2.166X3.290 |
| Weight (Kg) | 770 | 1.320 | 1.500 |
| Power supply (V,~,Hz) | 400, 3, 50 | 400, 3, 50 | 400, 3, 50 |
HOW MUCH CAN YOU HEAT WITH THE RENTAL OF ROOFTOP AIR CONDITIONERS AND MOBILE AIR CONDITIONERS TROLLEYS?
 MARQUEE |
 WALLING |
|||
| Catering use |
Industrial use |
Catering use | Industrial use | |
| ROOFTOP 30 | 120m3 | 280m3 | 240m3 | 560m3 |
| ROOFTOP 35 | 132m3 | 307m3 | 264m3 | 615m3 |
| ROOFTOP 50 | 150m3 | 350m3 | 300m3 | 700m3 |
| CARRELED 85 | 300m3 | 700m3 | 602m3 | 1.400m3 |
| CARRELED 109 | 410m3 | 955m3 | 820m3 | 1.910m3 |
CUSTOMISE YOUR SYSTEM
Extension cable
10 mt extension cords with adequate sections to prevent voltage drops, are available. Find out more
Generator
We have generators of various powers to meet the demand for electricity of our equipment.
Polyurethane ducting
Class 1 polyurethane ducting distributes the air evenly and thus makes the system similar to a fixed one, also available in class 0 phenolic material.
Microperforated duct
Used to spread out air. Non-invasive installation and therefore maximum comfort. Gallery
Totem
For a comfortable, silent and aesthetic air diffusion. Also available with remote control to adjust the vents.
Temporary panel
We produce ad hoc panels in polyurethane (class 1) to close doors or windows, left open by the passage of ducts of the heat cannon. Class 0 phenolic is also available.
Tarps
The plant area can be covered with a tarp, which hides all the equipment necessary for the operation of the heat cannon; coloured panels are also available.
Metal circular duct
Metal circular ducts are available, also painted and microperforated.
HORIZON Air Diffuser
HORIZON allows cold air to be directed to a specific area. Available in various colours and therefore easily transportable thanks to the wheels.
